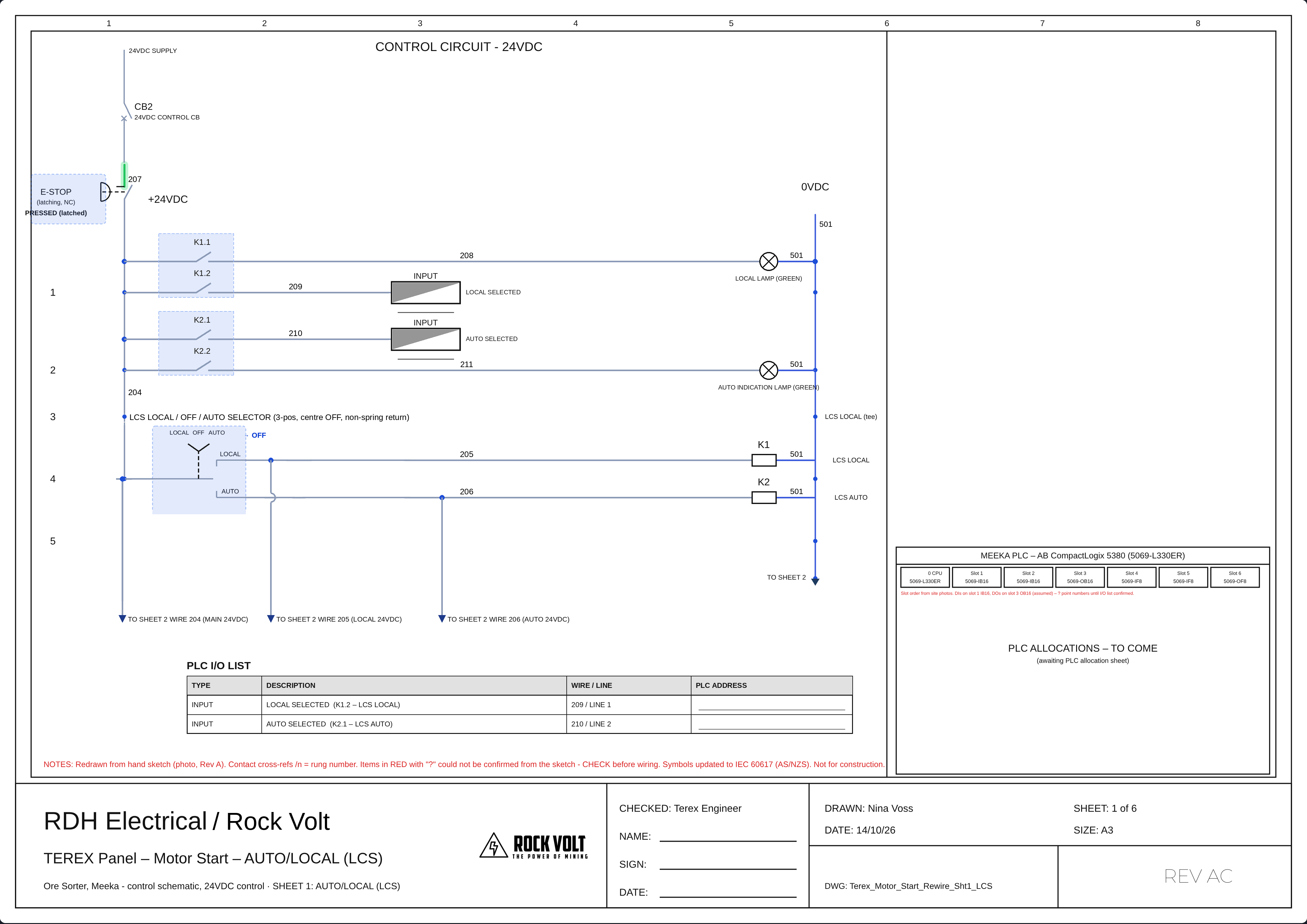

Sheet 1 – AUTO/LOCAL (LCS) Rev AC

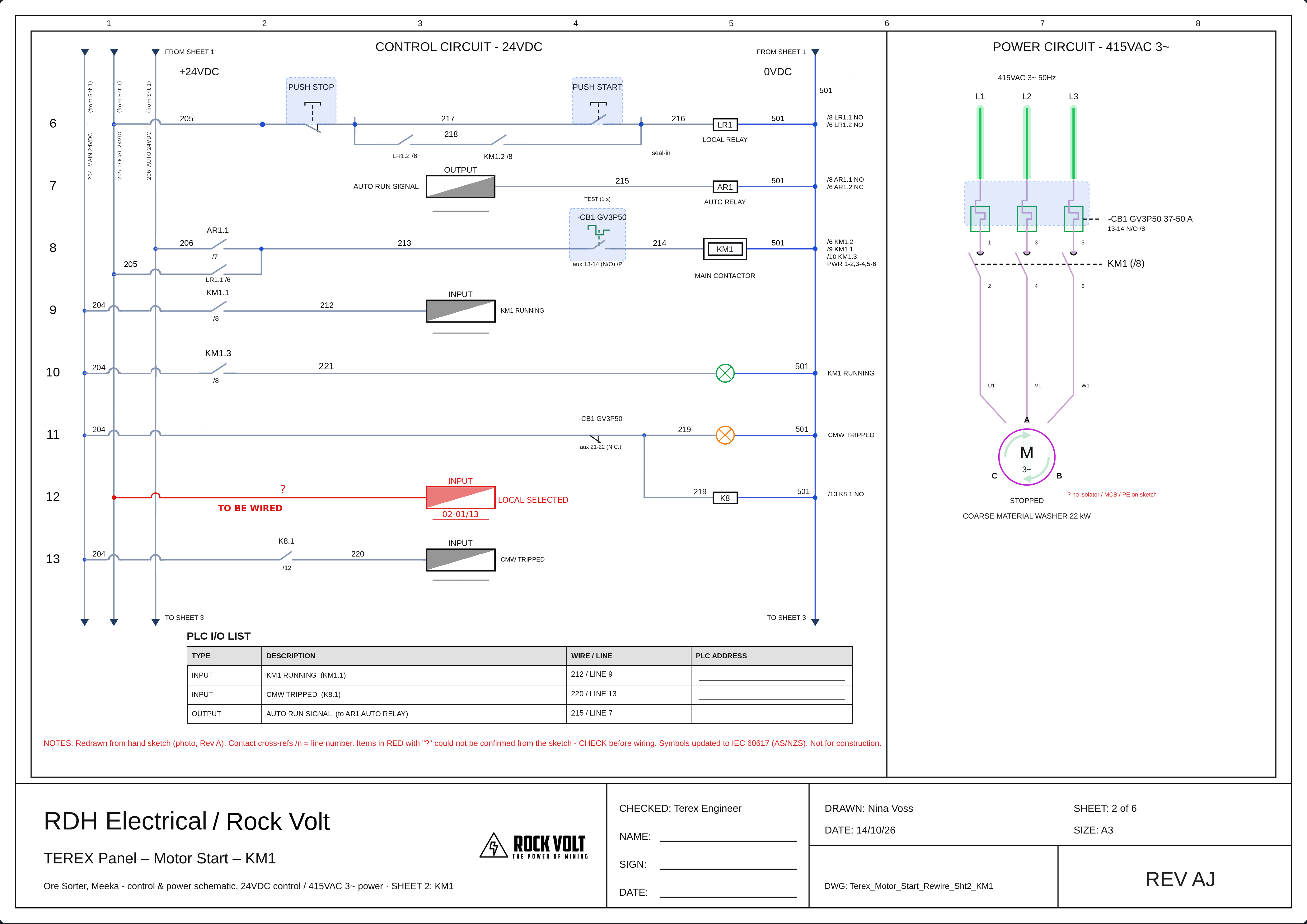

Click CB2 (24VDC CONTROL CB) for ON/OFF – OFF kills the 24VDC supply (207/204/205/206 and everything fed from them). Click the E-STOP and the 3-pos LCS LOCAL / OFF / AUTO selector (Sheet 1). Hold PUSH START / PUSH STOP. -CB1 GV3P50: click the CB1 in the power circuit (or its aux 13-14 box) for ON/OFF; click "TEST (1 s)" to trip (then OFF, then ON). Press the shaded triangle on a PLC INPUT/OUTPUT to force it (orange = forced; press again to release; AUTO only – switching to LOCAL releases all forces). SIM LOC/AUTO in the top bar = the LCS selector; E-STOP in the top bar = the drawn E-STOP (latching). Forced INPUT = 24VDC on the point; forced OUTPUT = as if the PLC commanded it. CMW TRIPPED lamp lights orange. Glow colour = the rail feeding it: 204 green, 205 LOCAL orange, 206 AUTO yellow (coils: outside rectangle). Pilot lights glow their own lamp colour. Running motor spins (A B C, 50 Hz). 🔗 BRIDGE drops a test wire (sim only): drag each clip onto a wire or terminal (snaps, shows e.g. 204 ↔ 206), drag the body to move it, tap it to Remove; a bridge between different supplies is a SHORT (red).
